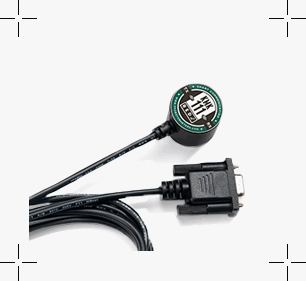

RS232 Optical Probe
REDZ KMK111 optical probe is designed in IEC 62056-21 standard and it is compatible with all brands and types of IEC meters. The probe comes in several varieties, with either has DB9 Female interface or DB9 Male interface for RS232 connection thus it can easily be used with handheld units with suitable interface and / or data collector devices
Mechanical Specifications- Diameter: 32mm
- Height: 28,5 mm
- Magnetic Force: N36
- Body and Back
- Cover Material: ABS
- Transparent Parts: Transparent Poly Carbonate
- Weight: ~ 125 gr
- Standard: IEC 62056-21 (former IEC 1107)
- Cable Length: 3 m
- Data Communication
- Speed: max 19200 baud
- Operating Voltage: 3,3 V (Passive port powered by DTR and / or RTS signals)
- Electrical Interface: RS232 DB9F
- Wavelength: ~ 900 nm
Optical Probe RS232 for Electricity Meters
| Quantity | VAT not included in the price |
|---|---|
| 1 | 119 EUR |
| 10 | 100 EUR |
| 100 | 94 EUR |
Shipping worldwide
