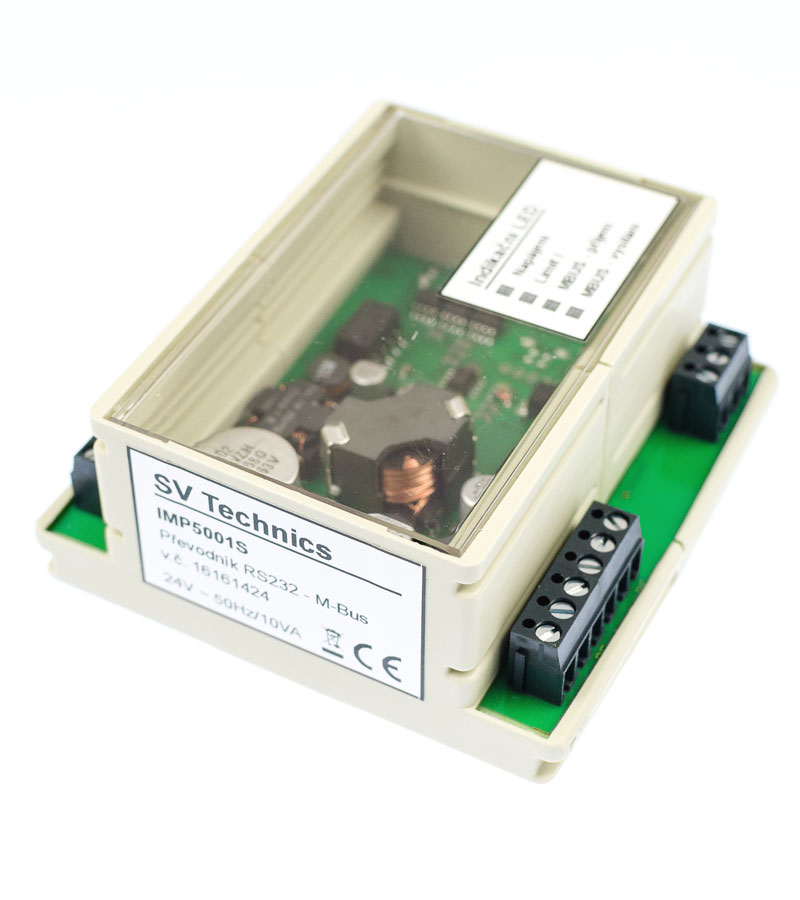

IMP5001S
IMP 5001S converter is designed for data collection from M-Bus, the most widely used bus unit in energetics, and complies fully with the EN 1434.3 standard. IMP 5001S can be used for the transfer speed from 300 to 9600bps with transfer from master to slave or from slave to master being executed by bus voltage or slave current respectively.
IMP 5001S converts RS232 from up to 125 slave unit to M-Bus interfaces. The converter has switched power supply and its energy dissipation is low due to the use of switched energy source. Whilst the M-Bus is conductively connected to the source voltage, the RS232 output is insulated by optocoupler. The current converter status, including transmission, reception or M-Bus short-circuit, are indicated by LEDs. Output current of the M-Bus interface is electronically limited depending on the converter version. IMP 5001S is designed to be mounted on a DIN rail.
Main Features- RS232C to M-Bus interface converter
- Complies with the EN 1434.3 standard
- Hardware design with switched power source and low energy dissipation
- Optional version with protocol transfer processor
SV Technics IMP5001S RS232C Mbus
| Quantity | VAT not included in the price |
|---|---|
| 1 | 273 EUR |
| 10 | 268 EUR |
| 100 | 227 EUR |
