MGDIZ - DIZ Electricity Industrial Counter

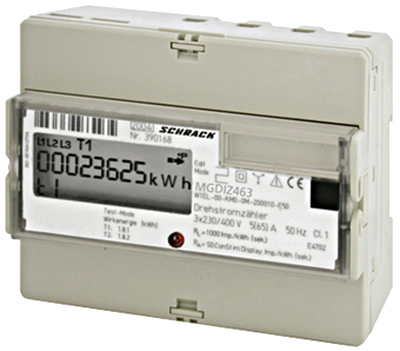

MGDIZ meters are two-digit digital meters for measuring active energy. They are designed for industrial and billing applications. They are compact in design, widths of only 6 TE, and also for measurement of supply and delivery. M-Bus or RS485 communication. They have an 8-digit LCD display, an adjustable converter and a battery. ČMI certificate - TCM 221 / 05-4240

Specifications:

Voltage:
• 4 - cable versions: 3x230 / 400 V, 3x58 / 100 V, 3x63 / 110 V, 3x290 / 500 V
• 3 - cable versions: 3x400 V, 3x110 V, 3x500 V
• 2 - cable versions: 1x230V, 1x58 V, 1x63 V, 1x100 V, 1x110 V
Current
• 5(65) A, 5II1 A, 1 A)
Frequency:
• 50Hz, 60 Hz
Accuracy class :
• Active energy: CI 1, according to ČSN EN 62053-21
Type of measurement
• Active Power: P + (with reverse block), variant : P-
Data Interface
• Electrical data interruption: M-Bus or RS485
• Data protocols: according to DIN EN 13757-2, 3
• Maximum speed: 9600 Bd
Pulse output
• Number: 1
• Opto MOSFET: max. 250 V AC / DC, 100 mA; For the transmission of pulses it is necessary to satisfy the S0 specification
Power supply
• Switching source: three-phase of the measured voltage
